YT27 Hand Held Pneumatic Rock Drill Machine Jack Hammer B87C

1.0 set
MOQ
YT27 Hand Held Pneumatic Rock Drill Machine Jack Hammer B87C
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Warranty: 3 years
Customized support: OEM
Model Number: B87C
Type: Air Hammer
Average Air Consumption: 55L/S max
Product name: Pneumatic breaker
Model: B87C
Basis informatie
Model Number: B87C, B87C
Betalen & Verzenden Algemene voorwaarden
Packaging Details: wooden case
Supply Ability: 10000 Set/Sets per Month
Productomschrijving

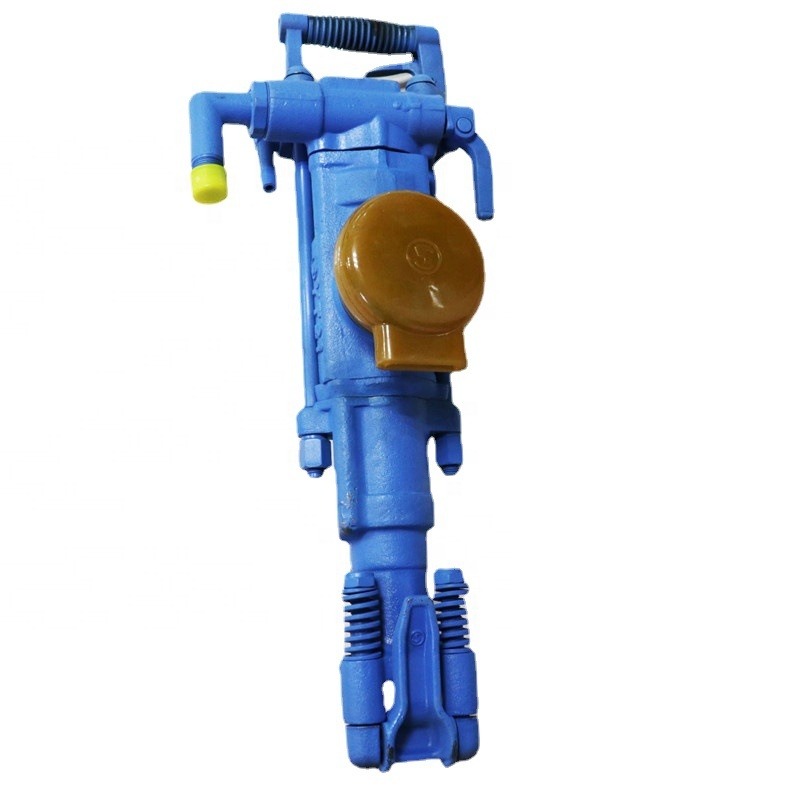

YT27 Handheld Pneumatic Rock Drill Machine Jack Hammer

Product Description

 YT27 Rock Drill is used for rock drilling, blasting holes and other drilling works in the quarries, small coal mines and other constructions. It is suitable for drilling and blasting under various of rocks at any direction angles.This machine could match with short air leg or long air leg.

Feature:

1.Fit for wet drilling in medium-hard or hard rock.

2.Grouped control mechanism,quick to start up, with "air on ,water on, air off,water off" mechanism,convenient to handle andeasy to maintain and repair.

3.Long service life of parts, parts highly interchangeable and reliable performance.

4.YT27 differ form similar products particularly in its high efficiency, strong flushing and powerful torque.



Main Parameter:

Product Name:YT27 Portable Pneumatic rock drill

 Key Selling Points: efficient and low energy consumption

Working Pressure(bar):0.4-0.63Mpa

Drilling Depth:6m

Drilling Diameter:32mm-56mm

Shank size:H22x108mm

Impacts Frequency:37 (HZ)

Cylinder Diameter:80 mm

Air Consumption :4.8m³/min

Dimension(L*W*H):668 x 248 x 202 mm

Weight:27 KG
