Name: SDEKON XJ-50Z XJ-50Z Digital Display Plastic Charpy Izod Impact Testing Machine
Brand: SDEKON XJ-50Z XJ-50Z Digital Display Plastic Charpy Izod Impact Testing Machine
SKU: XJ-50Z
Price: 1 USD
Availability: InStock
Rating: 4.8 (143 reviews)

Kenmerken Galerij Productomschrijving Verzoek om een Citaat

Kenmerken

Specificaties

Model Number: XJ-50Z

Power: Electronic

Pendulum Energy (Charpy): 1J, 2J, 4J, 5J, 7.5J, 15J, 25J, 50J

Pendulum Energy (Izod): 1J, 2.75J, 5.5J, 11J, 22J

Display Way: Digital Display

Impact Speed (Charpy): 2.9m/s, 3.8m/s

Impact Speed (Izod): 3.5m/s

Pendulum Angle: 160Â°

Fillet Radius Of Support Blades: R=1mm

Impact Blades Angle: 30Â°

Fillet Radius Of Impact Blades: R=2mm

Basis informatie

Model Number: XJ-50Z

Betalen & Verzenden Algemene voorwaarden

Packaging Details: Standard Export Plywood Wooden Case

Supply Ability: 500 Set/Sets per Month

Productomschrijving

SDEKON XJ-50Z

Digital Display Plastic Charpy & Izod Impact Testing Machine

Product Description

Applications:

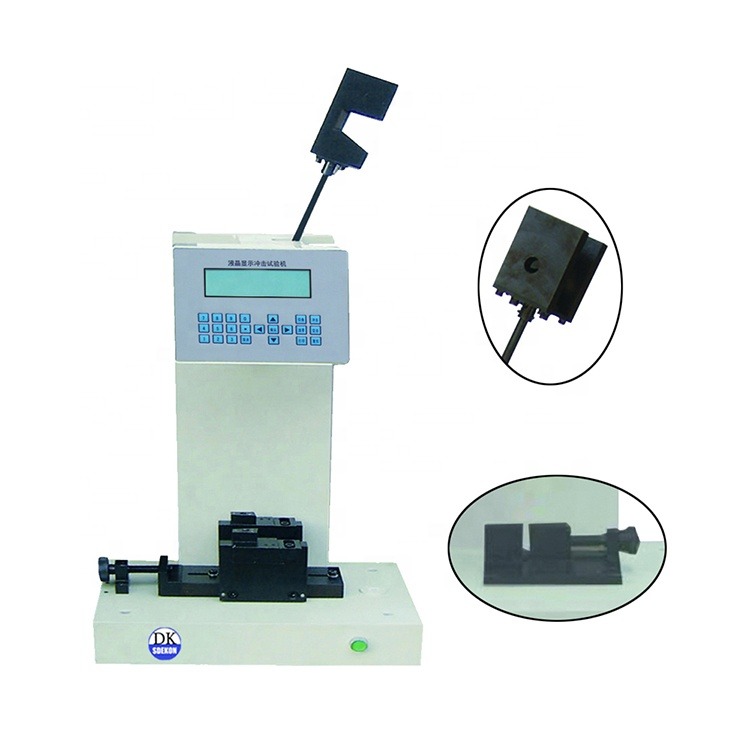

SDEKON XJ-50Z Digital Display Plastic Charpy & Izod Impact Testing Machine is single-chip

microcomputer control, digital display type.

Charpy impact and Izod impact, can be selected and combined the each of energy pendulum

arbitrarily. Its Man-Machine dialogue very convenient, high precision, automatic display the

impact energy, automatic calculation the impact strength, can automatic calculate the average

impact strength of the entire set of samples, can delete data arbitrarily. This machine is electric

release hammer, also installed the micro-printer, can print the test results.

Main Specification:

Model	XJ-50Z
Pendulum Energy	Charpy: 1J, 2J, 4J, 5J, 7.5J, 15J, 25J, 50J
Pendulum Energy	Izod: 1J, 2.75J, 5.5J, 11J, 22J
Impact Speed	Charpy: 2.9m/s; Charpy: 3.8m/s; Izod: 3.5m/s
Pendulum Angle	160°
Distance Between Pendulum Center And Sample Center	Charpy: 221mm; Charpy: 380mm; Izod: 322mm
Fillet Radius Of Support Blades	R=1mm
Impact Blades Angle	30°
Fillet Radius Of Impact Blades	R=2mm

Product Physical Pictures:

Our Services

Order Operation Process:

Select The Different Transportation Way:

Sales Products All Over The World:

Alibaba Trade Assurance:

FAQ
