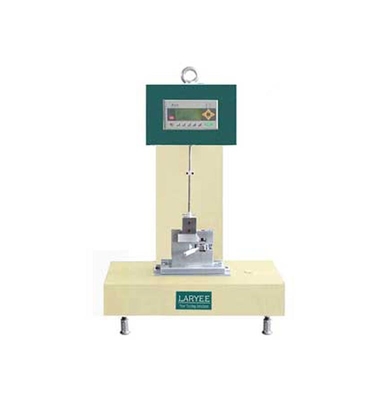

Name: ZIT2275 Quality PVC Board IZOD Pendulum Impact Testing Machine PVC Board IZOD Pendulum Impact Testing Machine
Brand: ZIT2275 Quality PVC Board IZOD Pendulum Impact Testing Machine PVC Board IZOD Pendulum Impact Testing Machine
SKU: ZIT2275,ZIT2222
Price: 1 USD
Availability: InStock
Rating: 4.8 (165 reviews)

Kenmerken Galerij Productomschrijving Verzoek om een Citaat

Kenmerken

Specificaties

Warranty: 1 YEAR

Customized support: OEM

Model Number: ZIT2275,ZIT2222

Power: Electronic

Function: PVC Board IZOD Pendulum Impact Testing Machine

Impact energy: 1J, 2.75J, 5.5J, 11J, 22J

Energy Accuracy: 1%

Impact speed (m/S): 3.5

Raising angle: 150Â°

Sample span size(mm): 10, 12.7

Impact center distance (mm): 335

Certificering: CE

Basis informatie

Certificering: CE

Model Number: ZIT2275,ZIT2222

Betalen & Verzenden Algemene voorwaarden

Packaging Details: Standard Export Wooden Case

Supply Ability: 150 Unit/Units per Month

Productomschrijving

1.Multi Pendulums (big and small) and Multi scale reading which enlarges the test range of energy.

2. Sample and support are easy centering.

3. ZIT22xx series Pendulum impact is PLC and digital LCD indicate and control

4. According to ISO 180 test standards

Model	ZIT2275	ZIT2222
Impact energy	1J, 2.75J, (5.5J)	5.5J, 11J, 22J
Energy Accuracy	1%	1%
Impact speed (m/S)	3.5	3.5
Pendulum moment	Pd1 = 0.53590Nm Pd2.75 = 1.47372Nm Pd5.5 = 2.94744Nm Pd11 = 5.8949Nm Pd22 = 11.7898Nm
Distance between striking edge to upper surface of clamps	22mm
Raising angle	150°	150°
Round angle radius of striking edge	R=0.8mm	R=0.8mm
Sample span size(mm)	10, 12.7	10, 12.7
Impact center distance (mm)	335	335
Scale Reading	0-1J Min. scale: 0.01J 0-2.75J Min.scale: 0.025J (0-5.5J Min. scale: 0.05J)	0-5.5J Min. scale: 0.05J 0-11J Min. scale: 0.1J 0-22J Min. scale: 0.2J
Dimension	550×350×900 mm	650 × 400 × 1100mm
Weight(Kg)	80kg	95kg
